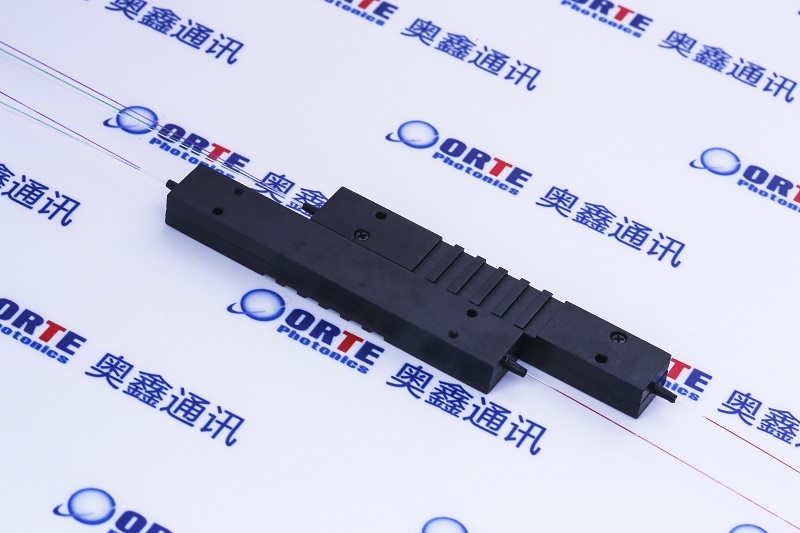

(N+1)*1 High Pump Efficiency Multi-Mode Pump Combiner
The pump combinator mainly pumps multiple photosynthetic beams into a single optical fiber for output, Mainly used to increase the pump power (also known as multi-mode - multi-mode fiber beam splitter).
(N+1) 1 The optical fiber in the center of the fiber splitter is a signal optical fiber. During the fabrication process, N multimode fibers must be arranged around the signal fiber in close symmetry, and the signal fiber in the middle is used for the signal light input. The fiber beam splitters are mainly used for fiber amplifiers.
- ORTE
- GUANGDONG,CHINA
- 3-6 WEEKS
- 2,000 pcs per month
- Information
- Download
(1+1)*1 Multi-Mode Pump Combiner /(2+1)*1 High Pump Efficiency Pump Combiner
Features
High Pump Efficiency
Wavelength Insensitive
Custom Configurations Available
Applications
Laser
Optical Specification
| Configuration | Unit | (1+1)×1, (2+1)×1 | (6+1)×1 | ||||
| Type | Multi-mode Pump Combiner(MPC) | ||||||
| Signal Wavelength | nm | 1000-1100 or 1550 | |||||
| Pump Wavelength | nm | 800-1000 | |||||
| Input Pump Fiber Type and NA | -- | 105/125 0.15/0.22NA or 200/220 0.22NA etc. | |||||
| Input Signal Fiber Type and NA | -- | X/125 DCF(X=6,10, 12,15,20umetc.) | X/250 DCF(X=25,30um etc.) | 1550 GDFor 8/125 0.14/0.46 DCF | X/125 DCF (X=6, 10, 12,15, 20um etc.) | X/250 DCF (X=25,30um etc.) | 1550 GDF or8 / 1250.14 / 0.46DCF |
| Output Pump/Signal Fiber Type and NA | -- | ||||||
| Pump Efficiency | % | ≥90 (Typ. 93) | |||||
| Insertion Loss | dB | ≤0.50 (Typ. 0.3) | |||||
| Operating Temperature | Deg. | -80 | |||||
| Storage Temperature | Deg. | -125 | |||||
| Fiber Length | m | 1.00±0.10 | |||||
| Max Pump Power per Port | W | 25 | 150 | ||||
| Package | mm | 3.5×54, 50×5×5, 75×12×8, 100×15×12, 150×15×12 | |||||
Product Ordering Guide
| XXXX | X | X | X | X |
| MPC: | Configuration | Operating Wavelength | Package | Signal Fiber Type |
| Multi-mode Pump Combiner | 1: (1+1)×1 | 1: 3.5×54 | 1: X/125 DCF | |
| 2: (2+1)×1 | 1: 1000-1100/800-1000 | 2: 50×5×5 | 2: X/250 DCF | |
| 3: (6+1)×1 | 2: 1550/800-1000 | 3: 75×12×8 | 3: 1550 GDF | |
| 3: other | 4: 100×15×12 | 4: 8/125 0.14/0.46 DCF | ||
| 5: 150×15×12 | 5: other | |||
| 6: other | ||||
