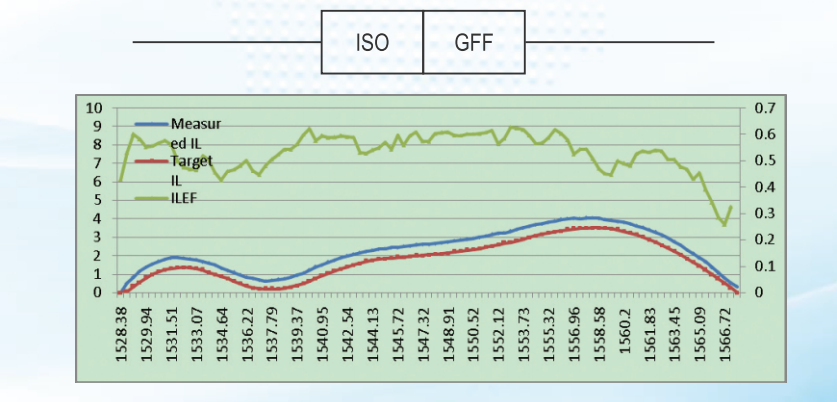

• Hybrid (ISO+GFF)

Hybrid (ISO+GFF)

Low Excess Loss High Isolation Low PDL Compact Design Epoxy-free Optical Path High Stability And Reliability
FeaturesApplications

Low Excess Loss

High Isolation

Low PDL

Compact Design

Epoxy-free Optical Path

High Stability And Reliability

EDFA



Optical Specification

Configuration

Unit

1×1

Type



Hybrid(ISO+GFF)

Operating Wavelength

  nm

1526-1567

Excess Loss

  dB

≤0.8

Insertion Loss EF Range

  dB

≤0.45

Isolation(23 C)

  dB

≥26.00

 PDL

  dB

≤0.10

PMD

  dB

≤0.05

 Return Loss

  dB

≥50.00

Operating Temperature

Deg.

-5-75

Storage Temperature

Deg.

-40-85

Fiber Length

   m

1.00±0.10

Fiber Type



G657A1 or Customized

Fiber Diameter

  um

250/900

Package

mm

2.5×20;2.5×25;3.2×30

NOTE:The   parameters  do   not   include  connector,  connector   IL   is   0.30dB
           Tested  at  23Deg.



Hybrid (ISO+GFF)
