ORTE Fused Optical Coupler 980nm 1310nm 1550nm with 2.4*25 Mini Size

Brand: ORTE
Product origin: Guangzhou China
Delivery time: 3-6 weeks
Supply capacity: 400,000 Pcs/month

Operating Wavelength(nm)：980 or 1310 or 1550, 1260-1620, 1310/1490/1550 Package: Φ3.0*45, Φ3.0*54, 90*16*10 ORTE supplys Single-Mode 1310nm Fused Coupler , 980nm Fiber splitter, 1550nm Fused Coupler in 2.4*25 mini size. Components from ORTE feature high reliability, low excess loss, and various coupling ratios. They can be used in various fields, including long-haul telecommunications, CATV Systems & fiber optic sensors, and local area network.

Email Annex

Features	Applications
Low Excess Loss Various Coupling Ratio Compact Size	Long-haul Telecommunications CATV Systems & Fiber Optic Sensors Local Area Networ

Confguration		Unit	1×2/2×2
Type			SingleModeStandardCoupler	SingleModeWideBandSingleWindow	AllBandCoupler	SingleModeDualWindowCoupler	SingleModeThreeWindowCoupler
			(SSC)	SingleModeWideBandSingleWindow	AllBandCoupler	SingleModeDualWindowCoupler	SingleModeThreeWindowCoupler
			(SSC)	Coupler(SWSC)	(ABC)	(SDWC)	(STWC)
OperatingWavelength		nm	980or1310or1550	980or1310or1550	1260-1620	1310/1550	1310/1490/1550
OperatingBandwidth		nm	±20	±40	--	±40	±40
Max Insertion Loss	50/50	%	3.35/3.35	3.40/3.40	3.80/3.80	3.60/3.60	3.60/3.60
	45/55	%	3.85/2.95	3.85/3.00	4.45/3.45	4.20/3.20	4.20/3.20
	40/60	%	4.40/2.55	4.40/2.60	5.10/3.10	4.70/2.70	4.70/2.70
	33/67	%	5.00/2.20	5.00/2.25	6.00/2.55	5.70/2.20	5.70/2.20
	30/70	%	5.70/1.85	5.70/1.90	6.40/2.30	6.00/1.90	6.00/1.90
	25/75	%	6.55/1.55	6.65/1.55	7.25/1.95	7.00/1.70	7.00/1.70
	20/80	%	7.55/1.25	7.60/1.25	8.30/1.60	7.90/1.30	7.90/1.30
	15/85	%	8.55/0.95	9.05/0.95	9.65/1.35	9.50/1.00	9.50/1.00
	10/90	%	10.80/0.65	11.00/0.65	11.50/1.05	9.20-11.00/0.75	9.20-11.00/0.75
	5/95	%	14.00/0.40	14.20/0.40	14.60/0.80	12.05-14.15/0.40	12.05-14.15/0.40
	3/97	%	16.30/0.30	16.70/0.30	17.00/0.75	14.10-16.50/0.35	14.10-16.50/0.35
	2/98	%	18.00/0.25	18.50/0.25	18.80/0.70	15.75-18.45/0.30	15.75-18.45/0.30
	1/99	%	21.50/0.20	21.50/0.20	22.50/0.65	18.60-21.60/0.25	18.60-21.60/0.25
PDL		dB	≤0.10			≤0.15
ReturnLoss		dB	≥50.00
Directivity		dB	≥55.00
OperatingTemperature		Deg.	-80
StorageTemperature		Deg.	-125
FiberLength		m	1.00±0.10
FiberDiameter		um	250		900		900/2000/3000
Package		mm	3×45		3×54		90×16×10

NOTE :The parameters do not include connector, connector IL is 0.30dB

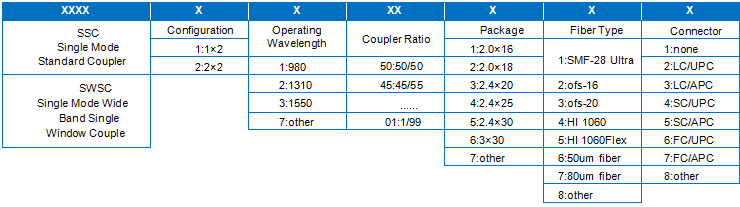

Product Ordering Guide

XXXX	X	X	XX	X	X	X	X
SSC:	Confguration	Operating	CouplerRatio	Fiber	Package	FiberType	Connector
SingleMode	1:1×2	Wavelength	CouplerRatio	Diameter	1:3×40	1:SMF-28®	1:none
StandardCoupler	2:2×2	0.722222222	50:50/50	1:250um	2:3×45	Ultra	2:LC/UPC
SWSC:		0.993055556	45:45/55	2:900um	3:3×54	2:ofs-16	3:LC/APC
SingleModeWideBand		1.201388889	……	3:2.0mm	4:90×16×10	3:ofs-20	4:SC/UPC
SingleWindowCoupler		4:1260-1620	01:1/99	4:3.0mm	5:other	4:HI1060	5:SC/APC
		5:1310/1490		5:other		5:HI1060Flex	6:FC/UPC
ABC:		6:1310/1490/1550				6:other	7:FC/APC
AllBandCoupler		7:other					8:other
SDWC:
SingleModeDual
WindowCoupler
STWC:
SingleModeThree
WindowCoupler

Annex

Fused Optical Coupler.pdf
