Wavelength-Specific Tap-PD/ISO-Tap-PD/Tap-PD Array Module

Brand: ORTE
Product origin: Guangzhou China
Delivery time: 4~6weeks
Supply capacity: 20,000Pcs/month

ORTE can provide PD for optical testing systems, high-sensitivity photodetector, compact design Tap-PD, and other Tap-PD array modules. ORTE's Tap-PD has the characteristics of Low Excess Loss, High Directivity, High stability, and reliability, which makes our PD widely used in EDFA Power Monitoring and Control, WDM Channel Monitoring, Variable Optical Attenuator & Multiplexer VMUX, Instrument and Equipment Optical Paths Detection, and Optical Paths Protection Monitoring.

Email Annex

Features characteristics

Applications applications

Low Excess Loss

High Directivity

Hight stabilityand reliability

Erbium fiber amplifier power monitoring and control

WDM channel monitoring

MUX channel optical power pre-equalization merger module

Instrumentation and equipment optical path detection

Optical path protection monitoring

Environmental Conditions

Parameter	Spec		Unit
Parameter	Min	Max	Unit
Operaing Temperature Range	5	70	℃
Storage Temperature Range	-0	85	℃
Storage Humidity	5	95	%RH
Operefion Humidity	5	95	%RH

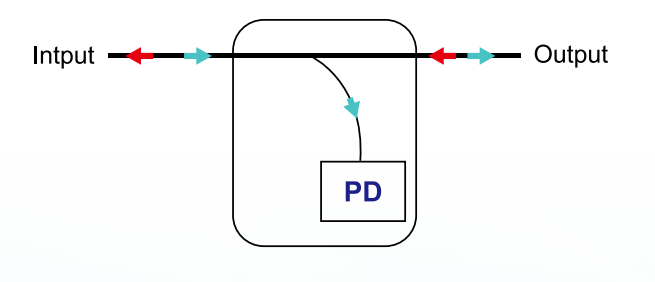

Functional Diagram

Tap-PD

OPtical SPecification

Parameters		Unit	Spec
Produat typo			TAP-PD	IS0-TAP-PD	TAP-PO array mnodule
Wavelength Range		nm	C/L-bandor Customized wave length
Tan Ratle		%	2 ar Customized tap ratio
Responsivity		mA/W	16~25
Insertion Loss	m@X	dB	0.6	0.9	0.6
Isolation	min	dB	One	18
Polarization Dependent Loss	.max	dB	0.15
Wavelength Dependent Loss	.max	dB	0.30
Temperature Dependent Loss	.max	dB	0.30
Return Los5	min	dB	45
Directivity[1]	min	dB	26	13	26
Dark Current at75℃,-5Vbias,0.56)	Max	on	5
Polarization Dependent Responsivity	.max	dB	0.20
Wavelength Dependent Rasponsivity	MBx	dB	0.50
Temperature Dependent Responsivity	max	dB	0.30
Fiber Type			Corning Glear Curve ZBL fiber
Fiber Length	Max	m	1.0
Max. Optical Power on PD	πaX	ABm	10
Qperating Temperature		℃	-5~75
Storage Temperature		C	-45~85
Package Dimension		mm	2.5X171.8X14	2.5X19	39×33×9.7

[1] Directivity is defined as- 10log (Rous→Pp/Rin→pu) wthere Rstands for responsivity

The above product information is for reference only. please contact our company for the latest information.

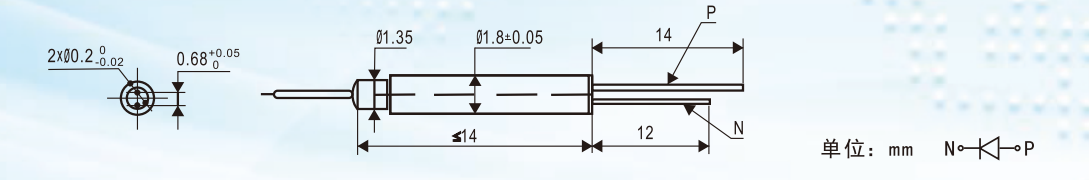

Physical Dimension Specifications

ISO-Tap-PD

Annex

GFF.pdf
