Low Excess Loss High Isolation Low PDL Compact Design High Stability And Reliability NOTE:The parameters do nat indude connector, connector IL is 0.30dB Tested at 23Deg.
| Features | Applications |
Low Excess Loss High Isolation Low PDL Compact Design Epoxy-free Optical Path High Stability And Reliability | EDFA Fiber Optic Instruments |
Optical Specification
Configuration | Unit | 1×2 | 2×2 | |
Operating Wavelength | nm | As:1526-1567 Ap:970-990 | ||

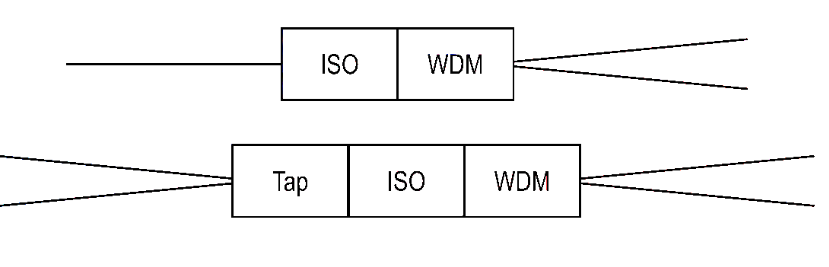

Type |
| Hybrid(ISO+WDM) | Hybrid(TAP+ISO+WDM) | |
Max Signal Port | dB | 0.80 | 2% | 5% |
1.00 | 1.20 | |||
Max Tap Port | dB |
| 2% | 5% |
16.00-18.00 | 12.00-14.50 | |||
Pump Port Insertion Loss @Ap | dB | ≤0.50 | ||
Isolation(C-S)@λs | dB | ≥20.00 | ||
lsolation(S-C)@Np | dB | ≥25.00 | ||
Isolation (C-P)@λs | dB | ≥15.00 | ||
PDL | dB | ≤0.10 | ||
PMD | dB | ≤0.05 | ||
Return Loss | dB | ≥50.00 | ||
Operating Temperature | Deg. | -5-75 | ||
Storage Temperature | Deg. | -40-85 | ||
Fiber Length | m | 1.00±0.10 | ||
Fiber Type |
| G657A1 & OFS-16 or Customized | ||
Fiber Diameter | um | 250 | ||
Package | mm | 2.5×25;2.5×30;3.2×30;3.2×35 | ||
NOTE:The parameters do not include connector, connector IL is 0.30dB | ||||
Low Excess Loss High Isolation Low PDL Compact Design High Stability And Reliability NOTE:The parameters do nat indude connector, connector IL is 0.30dB Tested at 23Deg.
Operating Wavelength(nm)：1260~1620 Package: Φ5.5*22, Φ5.5*31 ORTE can provide 1XN MEMS optical switch, like high-speed MEMS Switch and high reliability fiber switch. 1XN MEMS Optical Switch from ORTE features low loss、PDL、WDL, Low power consumption, compact size, fast switch time, high repeatability, stability, and durability meet GR-1209 and GR-1221 standards. It can be used in data center, fiber sensing, optical routing, and network monitoring.
Low Excess Loss Large Expanded Field Stable More Tolerance For Alignment
Low Excess Loss High Return Loss Compact Dessign High Stability And Reliability
