• Faraday Rotator Mirror(FRM)

Faraday Rotator Mirror(FRM)

Low Excess Loss Wide Operating Wavelength Range Low PDL Compact Design High Stability And Reliability
FeaturesApplications

Low Excess Loss

Wide Operating Wavelength Range

Low PDL

Compact Design

High Stability And Reliability

Fiber Optic Sensing

Test And Measurement



Optical Specification

Type

Unit

Faraday Rotator Mirror (FRM)

Operating Wavelength Band

nm

1310/1550

Bandwidth

nm

±15.00

Insertion

dB

≤0.50(Type≤0.30)

Rotation Angle

Deg.

90±3

PDL

dB

≤0.10

Operating Temperature

Deg.

-5-75

Storage Temperature

Deg.

-40-85

Fiber Length

m

1.00±0.10

Fiber Type



G657A1 or Customized

Fiber Diameter

um

250

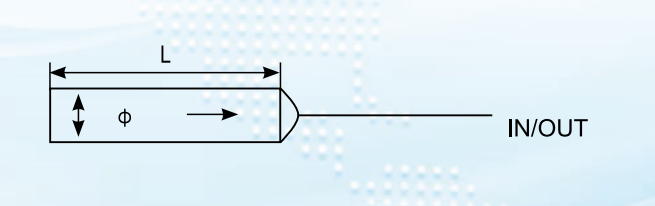

Package

mm

2.4×12

NOTE: The parameters do not include connector, connector IL is 0.30dB
          Tested at 23 Deg.

Faraday Rotator Mirror


Annex
