Low Excess Loss High Isolation Low PDL Compact Design High Stability And Reliability NOTE:The parameters do nat indude connector, connector IL is 0.30dB Tested at 23Deg.
Product Description
peculiarity Low Excess Loss High Isolation Low PDL Compact Design Epoxy-free Optical Path High Stability And Reliability | apply EDFA |
Optical Specification performance specification
| Configuration | Unit | 1×1 | 2×2 |
| Type | GFF | ||
| Operating Wavelength | nm | 1526-1567 | |
| Excess L0ss | dB | ≤0.70 | ≤0.70 |

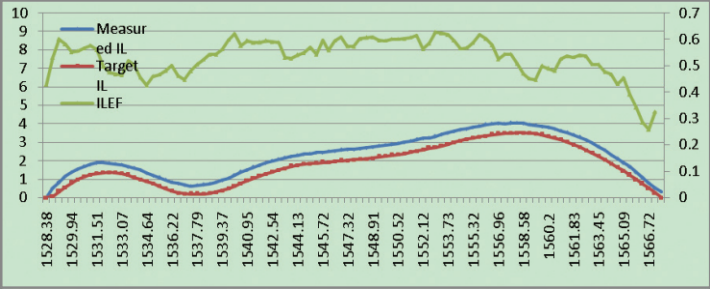

| Insertion Loss EF Range | dB | $0.45 | ≤0.60 |
| PDL | dB | ≤0.10 | ≤0.10 |
| Return Loss | dB | ≥50.00 | |
| Operating Temperature | You. | -5-75 | |
| Storage Temperature | You. | -40-85 | |
| Fiber Length | m | 1.00±0.10 | |
| Fiber Type | G657A1 or Customized | ||
| Fiber Diameter | at | 250/900 | |
| Package | mm | 2.5×20;3.2×30;3.8×33 | 3.2×30;3.8×33 |
NOTE: The parameters do not include connector, connector IL is 0.30dB
Tested at 23Deg.
The above product information is for reference only, please contact our company for the latest information.
